Vacuum Chucks, Systems and Accessories

Our versatile line of Vacuum Chucks provides an easy and economical answer to your workholding problems.  Our manufacturing facility is well equipped to provide Vacuum Chucks to suit your workholding needs—from standard units, to custom designed chucks and systems.  Our Vacuum Chucks offer distinct advantages through our continually improving concepts of vacuum workholding.  Through the principle of negative pressure, Magna-Lock USA Vacuum Chucks hold ferrous, non-ferrous and non-metallic materials and work pieces with pounds to tons of dependable vacuum holding power.  The compact size, simplicity of design, and amazing versatility of our Vacuum Chucks, improve production and increase hourly output.

MAV-12RC
MAV-12RC

Our rotary vacuum chucks can have groove patterns that are circular or grid. Shown here is our circular pattern. Specifications for depth and width can be specified by customer.

press to zoom

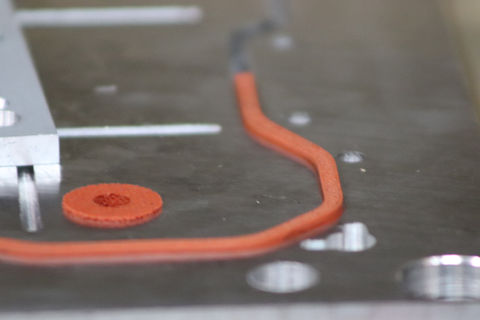

Channel-Seal
Channel-Seal

When ordering our Channel-Seal for your vacuum chuck please measure correctly. Normally it should be 1/32” above the chuck. Channel-Seal stretched too far during installation will produce an insufficient seal between the chuck and work piece causing holding problems. Worn, torn, or aged Channel-Seal can produce an insufficient seal as well.

press to zoom
Large Vaccum Table and System
Large Vaccum Table and System

We offer custom designed vacuum chucks to suit our customer's needs. There is no size too big or small.

press to zoom
Vacuum Chuck with part
Vacuum Chuck with part

Vacuum chuck holding an aluminum part, shown in red, ready for machining.

press to zoom
Custom-made Concave Vacuum Chuck
Custom-made Concave Vacuum Chuck

Our engineering department is willing to accommodate nearly all of our customer's workholding needs.

press to zoom
Custom Designed Vacuum chuck for odd shaped parts
Custom Designed Vacuum chuck for odd shaped parts

This special vacuum chuck required specific dimensions and shape of customer's unique part. Using our Channel Seal and indicator pins, this chuck proved to be very successful for this customer.

press to zoom

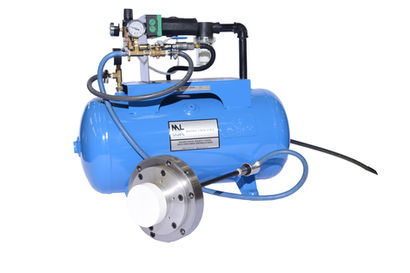

VacMaster III with rotary vacuum chuck
VacMaster III with rotary vacuum chuck

VacMaster III with customer's part on rotary vacuum chuck on rotary union adapter.

press to zoom
Small Vacuum Chuck used for testing
Small Vacuum Chuck used for testing

Our engineering department can design a vacuum chuck for even the smallest of workholding needs.

press to zoom
Large Vacuum Chuck
Large Vacuum Chuck

Magna Lock manufacturers a wide variety of standard sizes to fit most existing machining and assembling equipment.

press to zoom
Vacuum Chuck used for grinding carbide
Vacuum Chuck used for grinding carbide

Our vacuum chucks have been used to hold non-porous materials, including ferrous, non-ferrous and non-metallic materials in virtually any configuration and size.

press to zoom

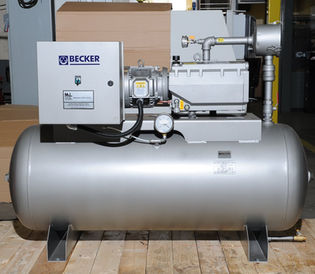

TV Vacuum System
TV Vacuum System

Each system includes vane-type vacuum pump, electric motor, steel reservoir tank and drain, vacuum check valve, adjustable pressure switch, inlet filter and exhaust muffler.

press to zoom
Woodworking Vacuum Chuck
Woodworking Vacuum Chuck

Many of our customers use their vacuum chucks for woodworking, including custom cabinetry and musical instruments.
